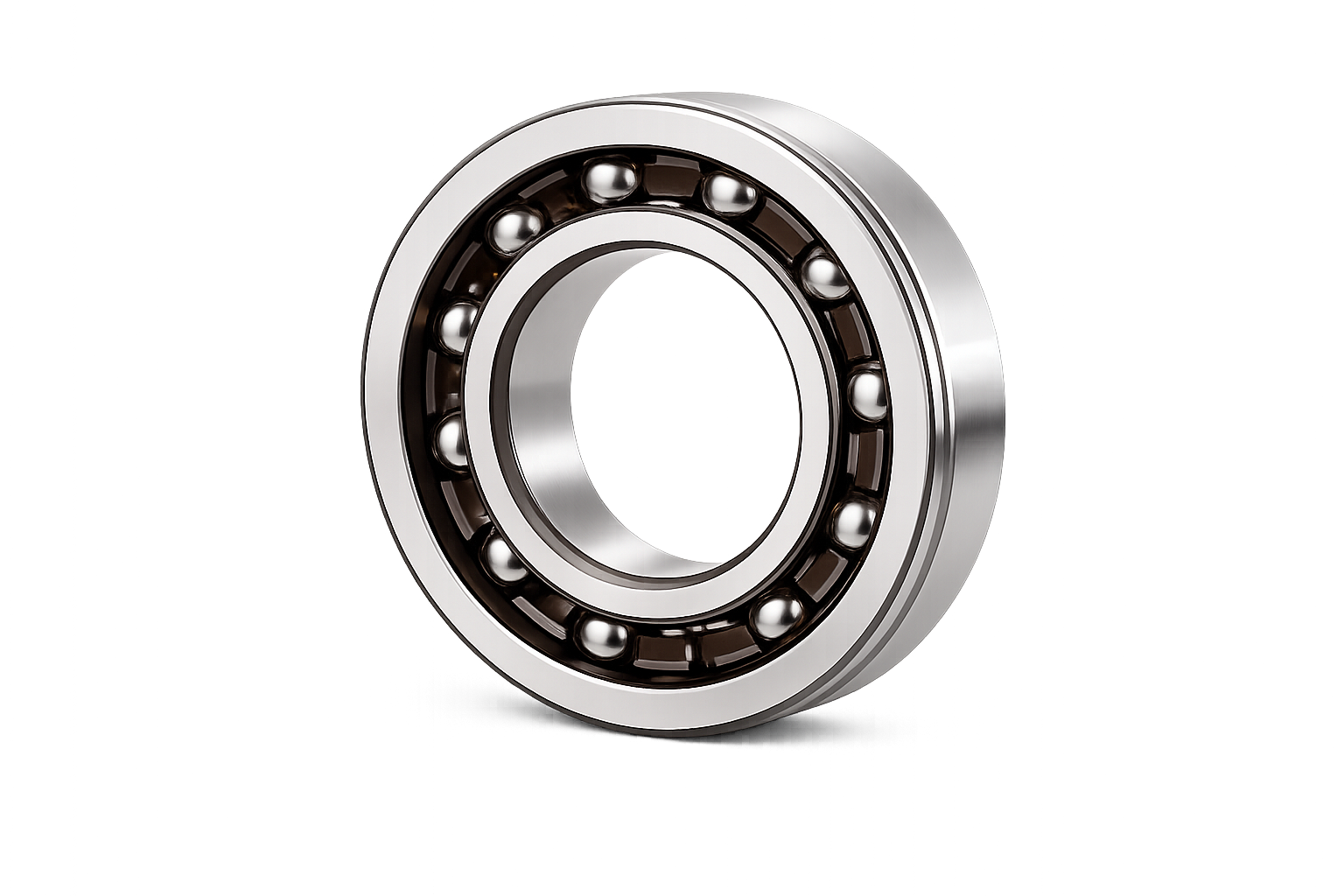

FAG B7024-E-T-P4S-UM High Precision Angular Contact Ball Bearing

The FAG B7024-E-T-P4S-UM is a premium single-row angular contact ball bearing engineered for high-speed, high-precision applications where exceptional accuracy and rigidity are required. Manufactured in Germany, this bearing is designed for machine tool spindles, precision machining centers, grinding machines, and other demanding industrial equipment.

Featuring a 25° contact angle, P4S precision class, and medium preload (UM) for universal matching, this bearing delivers outstanding running accuracy, high load capacity, and reliable performance at elevated speeds. Its textolite cage with an outer ring-centered design helps reduce friction while maintaining excellent stability during high-speed operation.

Features

• High-precision single-row angular contact ball bearing
• P4S precision class (better than P4 accuracy)
• Universal matching (UM) for paired or multi-bearing arrangements
• Medium preload for increased rigidity and accuracy
• 25° contact angle for combined radial and axial loads
• Textolite cage for high-speed performance
• Large steel balls for enhanced load capacity
• Manufactured in Germany

Specifications

• Part Number: B7024-E-T-P4S-UM
• Brand: FAG
• Bearing Type: Single Row Angular Contact Ball Bearing
• Dimensions: 120 × 180 × 28 mm
• Weight: 2.27 kg (5.00 lb)
• Precision Class: P4S (Better than P4)
• Bearing Arrangement: Universal Matching
• Preload: Medium (UM)
• Contact Angle: 25°
• Dynamic Load Rating: 109,000 N
• Grease Limiting Speed: 6,700 RPM
• Oil Limiting Speed: 10,000 RPM
• Country of Origin: Germany

Common Applications

• CNC machine tool spindles
• Precision milling machines
• Grinding machines
• High-speed machining centers
• Industrial automation equipment
• Aerospace and precision manufacturing
• High-performance rotating equipment

Value Bearings supplies genuine, high-quality bearings from leading manufacturers. Contact us for bulk pricing, OEM requirements, or assistance selecting the correct bearing for your application. Fast shipping is available on in-stock products.
