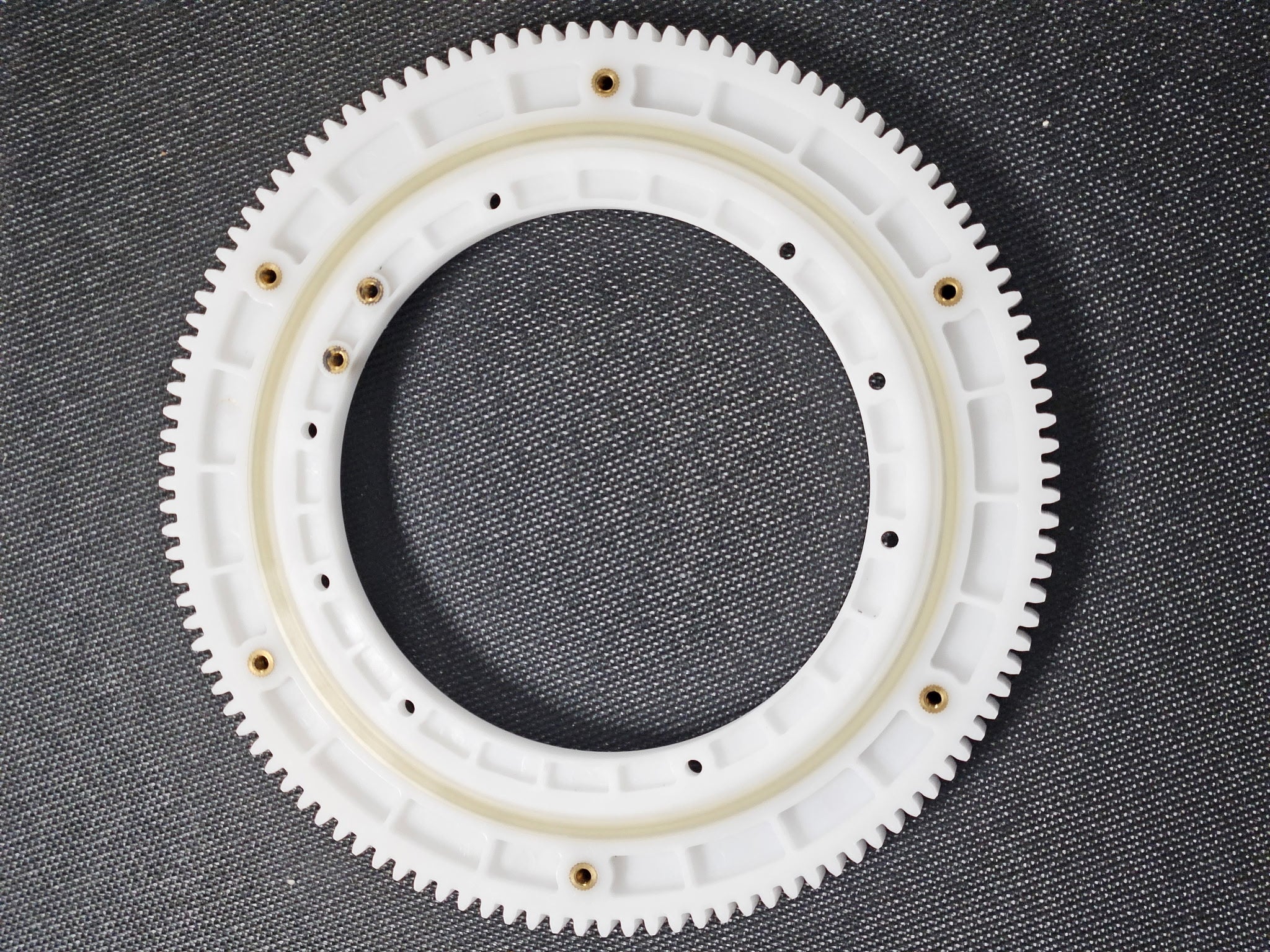

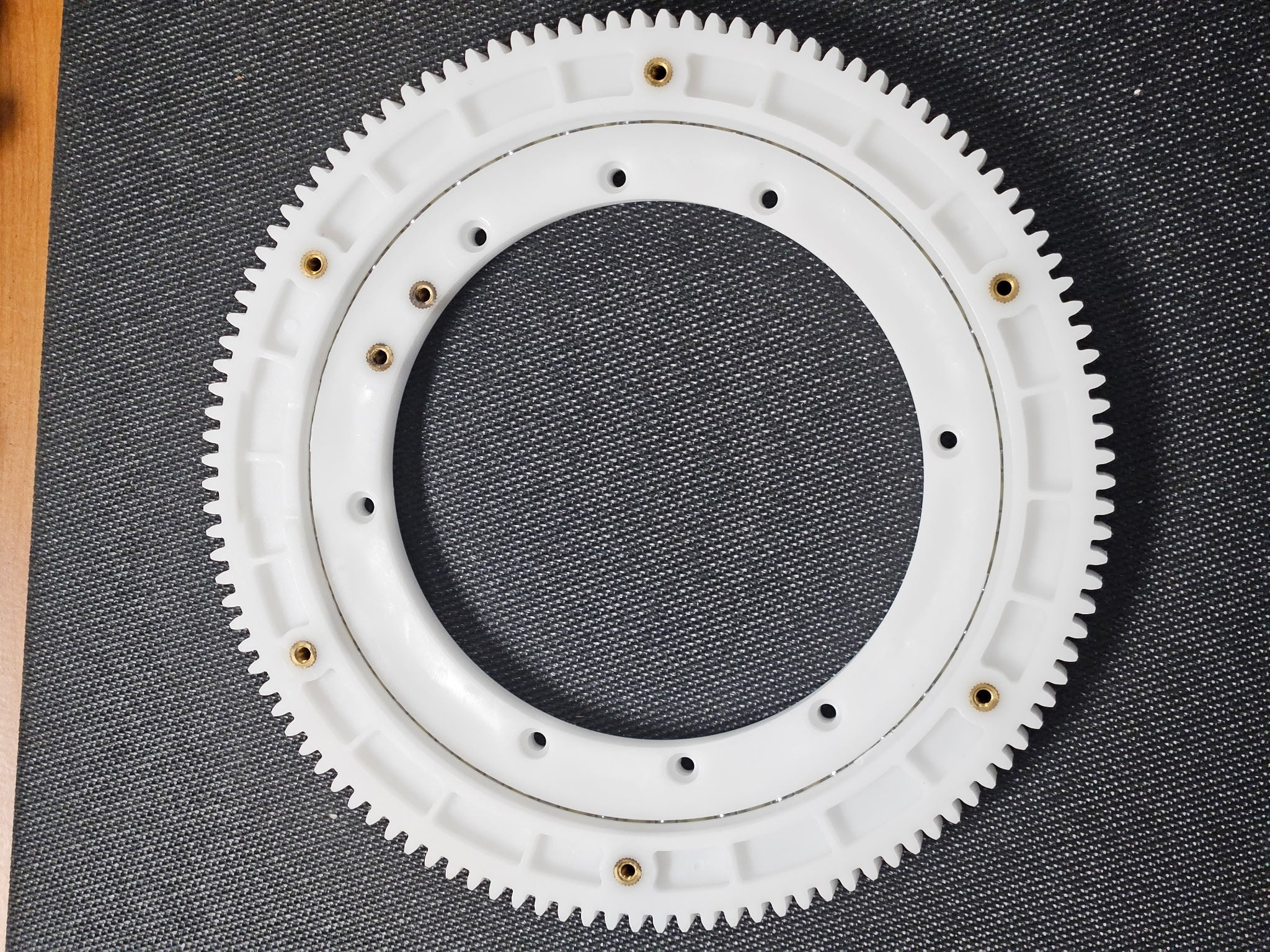

Plastic Slewing Bearing PN 2200266 is a lightweight polymer slewing/turntable bearing with an outer gear profile and integrated threaded inserts. This bearing is designed for rotational support applications where a low-friction plastic bearing assembly is preferred.
The material as polyoxymethylene, also commonly known as POM/acetal, and shows a geared outer ring with 115 teeth. The bearing includes thru holes and threaded inserts for mounting. The drawing also calls out a required bearing clearance of 0.20–0.28 mm and a maximum static friction torque of 2 in-lbs.
Specifications
| Detail | Specification |
|---|---|
| Part Number | 2200266 |
| Product Type | Plastic Slewing Bearing / Plastic Turntable Bearing |
| Material | Polyoxymethylene / POM / Acetal |
| Outer Diameter | 8.345 in |
| Root Diameter | 8.024 in |
| Pitch Diameter | 8.201 in |
| Inner Opening / Bore Shown | 5.000 in |
| Gear Teeth | 115 teeth |
| Diametral Pitch | 14.022 |
| Addendum | 0.072 in |
| Dedendum | 0.088 in |
| Bearing Clearance | 0.20–0.28 mm |
| Max Static Friction Torque | 2 in-lbs |
| Mounting Holes | 8 × 0.1695 in thru holes |
| Inserts | 8-32 threaded inserts |
| Thread Requirement | Minimum 0.25 in threads on listed inserts |
| Grease | 1/4 cc specified grease |
| Grease Options Listed | Nye Uniflor 8921 or Kyodo Yushi Meltemp PS2 |
